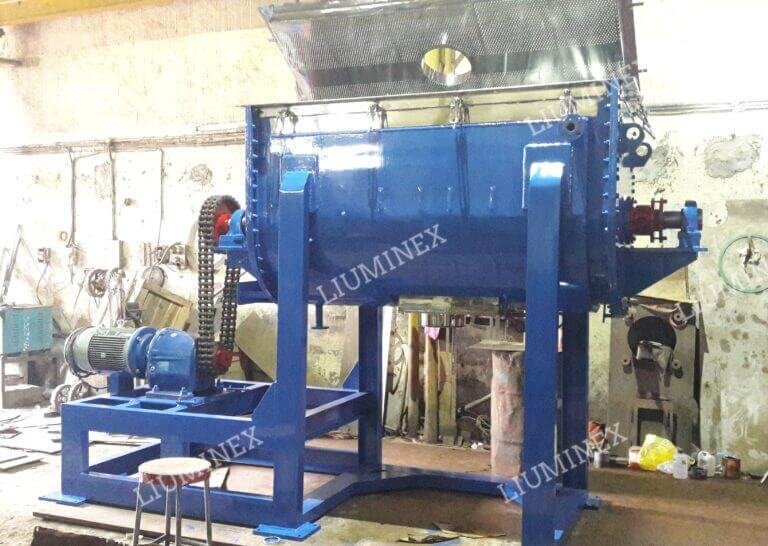

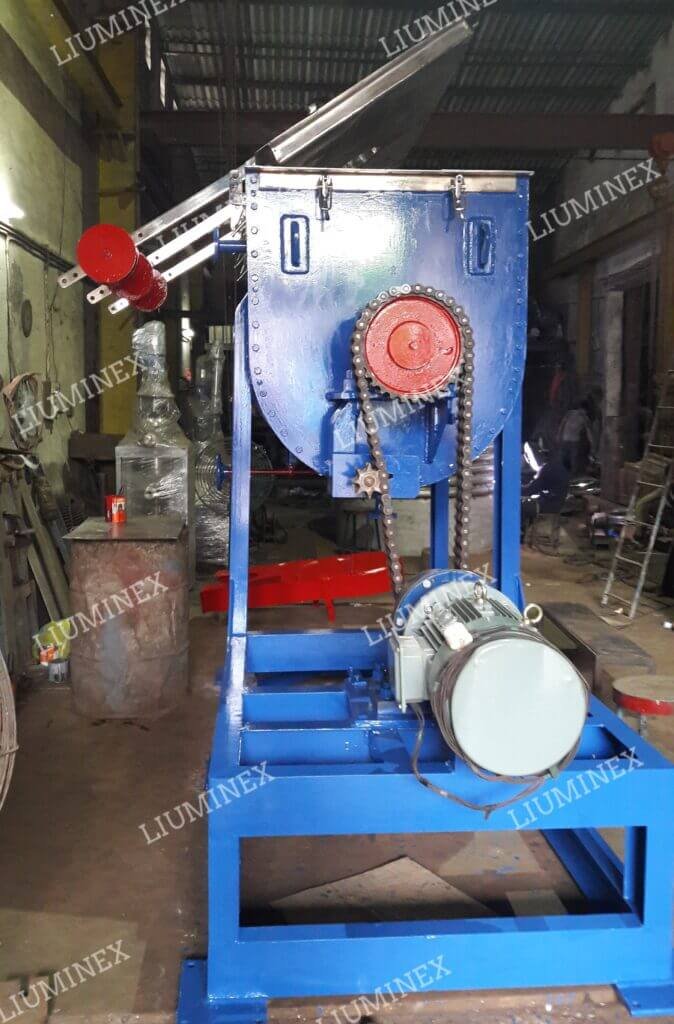

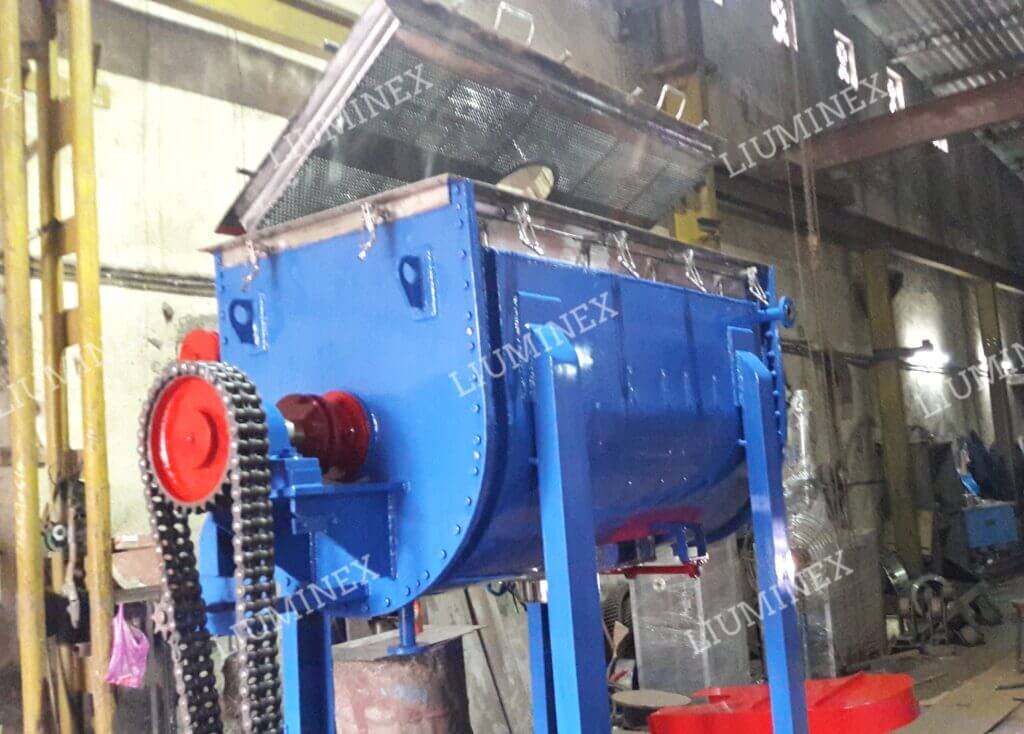

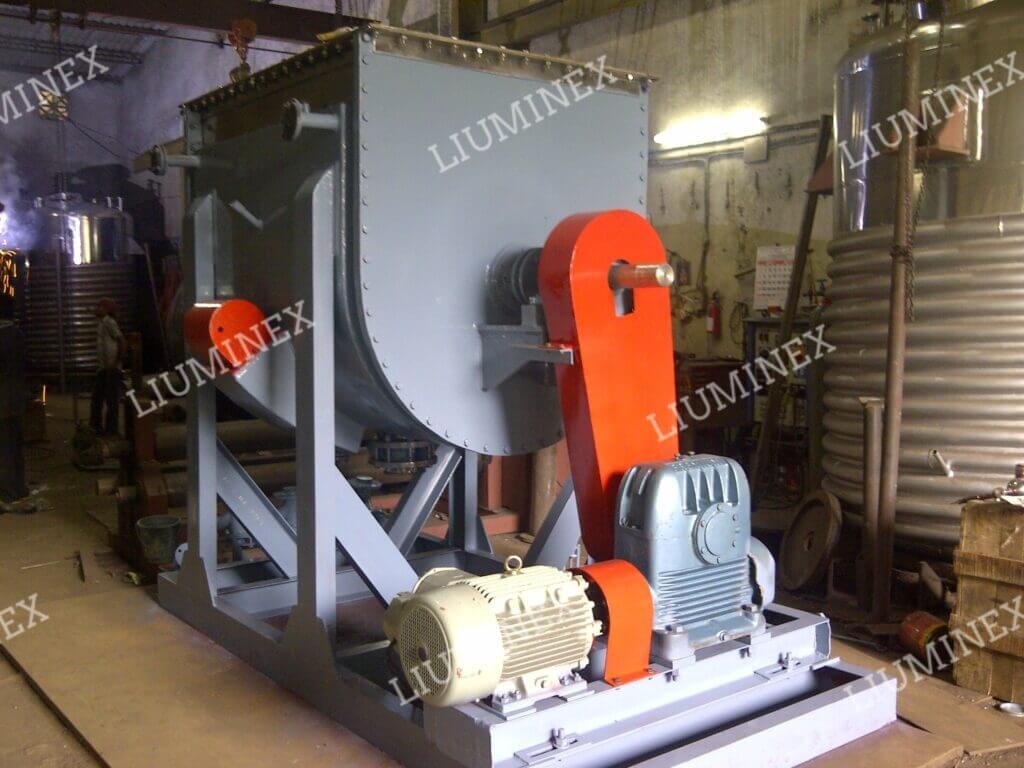

Ribbon Blender
Heavy-Duty Ribbon Blenders for Efficient Mixing
At Liuminex, we manufacture high-performance Ribbon Blenders designed for uniform and quick mixing of dry powders, granules, slurries, and semi-wet pastes. Our blenders are engineered for gentle yet thorough mixing, suitable for a wide range of industrial applications including chemicals, pharmaceuticals, lubricants, food processing, cosmetics, resins, and more.
Ideal for Mixing
- Dry powders (detergents, chemicals, agrochemicals)
- Lubricating greases and gels
- Resins, pastes, pigments, and colorants
- Food ingredients, spices, protein powders
- Animal feed, nutraceuticals
- Cosmetics (scrubs, creams, powders)
Key Features
- Double-Helical Ribbon Design for uniform axial and radial mixing
- Solid shaft with inner & outer ribbon flights
- Hygienic design – easy access doors for cleaning
- Optional spray nozzles for liquid addition
- Dust-tight operation with gasketed covers
- Available in GMP, food-grade, or heavy-duty models
- Batch or continuous configurations available
Technical Specifications
Parameter | Specification |
Capacity Range | 50 Litres to 10,000 Litres |
Mixing Time | 10 – 20 minutes (depending on material) |
Material of Construction | SS304, SS316, MS, or carbon steel with coating |
Drive System | Gearbox with motor (TEFC / flameproof) |
Ribbon Type | Inner & outer ribbons (helical) |
Discharge Type | Manual / pneumatic / motorized valve |
Control Panel | Manual / Semi-auto / PLC-based (optional) |
Optional Customizations
- Jacketed design for heating/cooling
- Load cell integration for batch accuracy
- Flameproof motors for hazardous zones
- Vacuum-rated models for moisture-sensitive mixing
- CIP-ready (Clean-in-Place) models
- Screw conveyor or auger for discharge
- Liquid spray systems with metered dosing
Industries Served
- Chemical & Agrochemical
- Lubricants & Grease Manufacturing
- Food & Beverages
- Pharmaceutical & Nutraceutical
- Cosmetics & Personal Care
- Plastic, Masterbatch & Resin Compounds
